📋 Description
The fish debone machine, also known as a fish meat and bone separator, is professionally designed to separate fish bones from meat. It is highly versatile and suitable for marine fish, freshwater fish, and various other species. This machine efficiently separates fish meat, bones, skin, and tendons, ensuring a high utilization rate. The extracted fish meat can be immediately processed into value-added products such as fish balls, fish tofu, and fish dumplings.
🍤 Applied Raw Materials
Our fish deboning machine features a broad range of applications. Beyond removing fish bones, it is expertly used for collecting meat from crabs and shrimp. The collected meat paste serves as a high-quality base for various seafood and meat products.

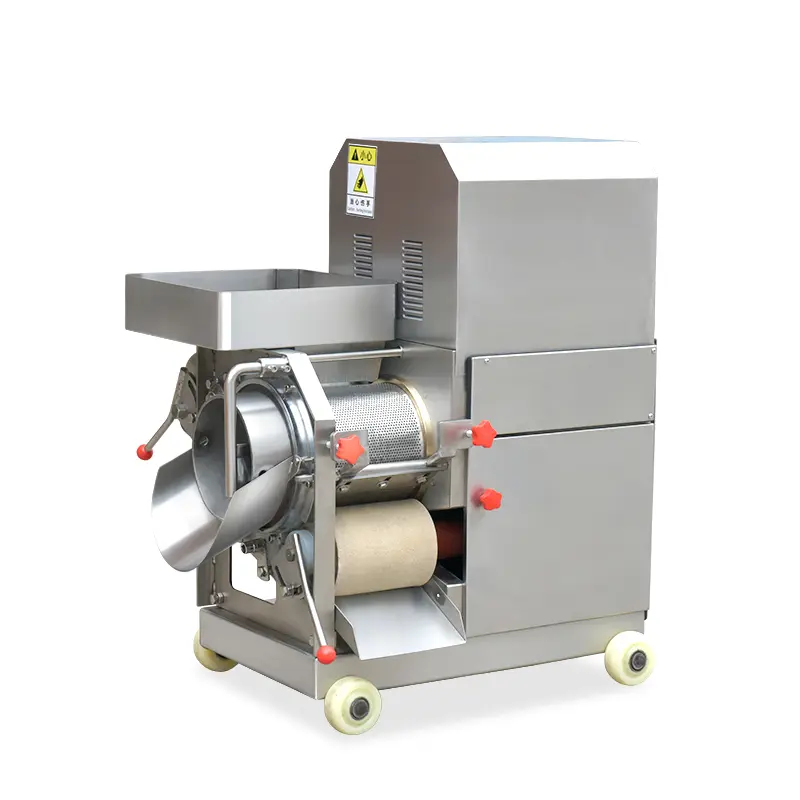

⚙ Structure of Fish Debone Machine
The machine integrates several high-precision components to ensure seamless operation:
1
Water Intake: The entry point where whole fish are introduced into the deboning system.
2
Minced Meat Outlet: The dedicated exit for the pure, separated fish meat.
3
Fishbone Outlet: A separate discharge point for bones, ensuring no cross-contamination with the meat.
4
Roller: The core component featuring uniform sieve holes. Under continuous rolling pressure, the meat is forced through the small holes while bones are excluded and discharged separately.
5
Transmission: The central control unit that governs the entire machine's mechanical operation.
✔ Key Features
•
Multipurpose Separation: Efficiently isolates fish meat from bones, skin, and tendons.
•
Efficiency: Significant labor savings and a maximized meat recovery rate.
•
Hygiene: Smooth shapes and polished 304 stainless steel surfaces ensure perfect, easy cleaning.

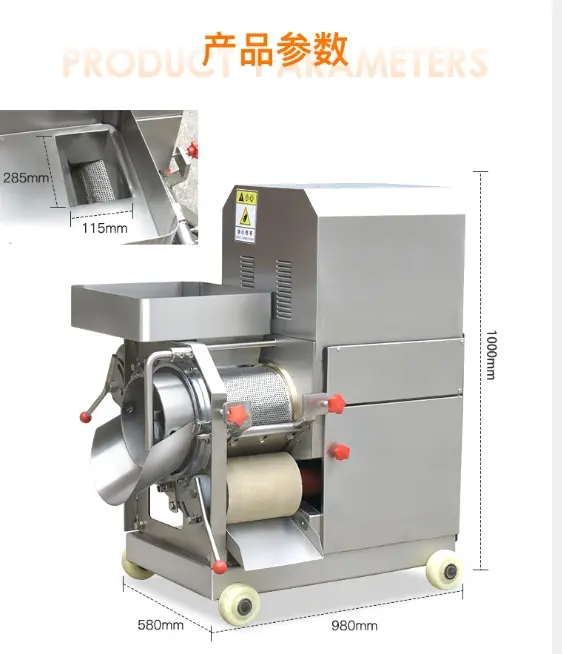

📊 Technical Specifications
| Name |
Fish debone machine |
| Material |
304 Stainless Steel |
| Application |
Fish processing plant, Food & Beverage Factory |
| Raw Material |
Meat, Chicken, Fish, Pork, Beef, Mutton, Crabs, Shrimp |
| Automatic Grade |
Automatic Electric |
| Power / Voltage |
2kw / 380V |
| Weight |
450 KG |
| Core Components |
Motor, PLC |
| Warranty |
1 Year |
| Key Selling Point |
High Productivity |
Frequently Asked Questions
What types of fish can this machine process?
The machine is suitable for a wide variety of fish, including marine fish and freshwater fish. It can also be used for shrimp and crabs.

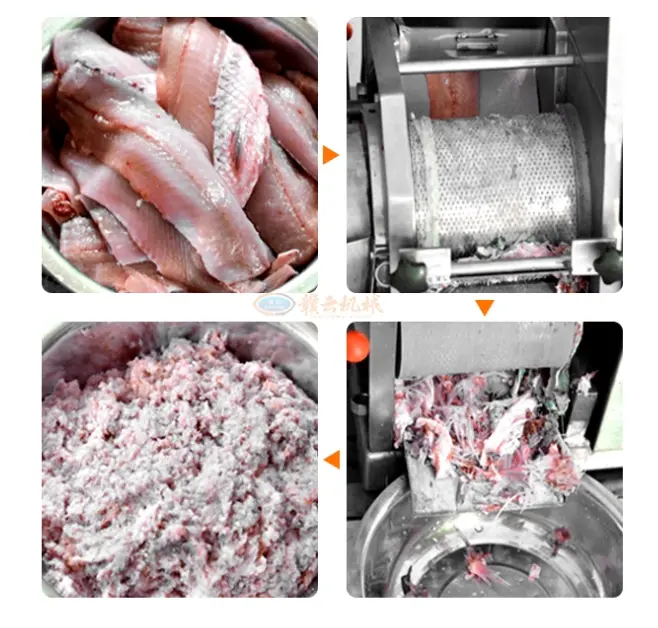

How does the machine separate the meat from the bone?
It uses a high-speed rotating drum with sieve holes. The pressure between the drum and the conveyor belt forces the meat into the drum, while bones and skin stay outside.
Is the machine made of food-grade material?
Yes, the machine is constructed from high-quality 304 stainless steel, ensuring it meets international food safety and hygiene standards.
Can the machine handle other meats besides fish?
While optimized for fish, it can also be applied to chicken, pork, and beef for specific meat-bone separation tasks.
What products can I make with the separated meat?
The minced meat is ideal for making fish balls, fish tofu, fish dumplings, patties, and various other processed meat products.
Is it easy to clean and maintain?
Absolutely. The machine features polished surfaces and a smooth design, which allows for thorough cleaning and easy maintenance to ensure long-term productivity.
